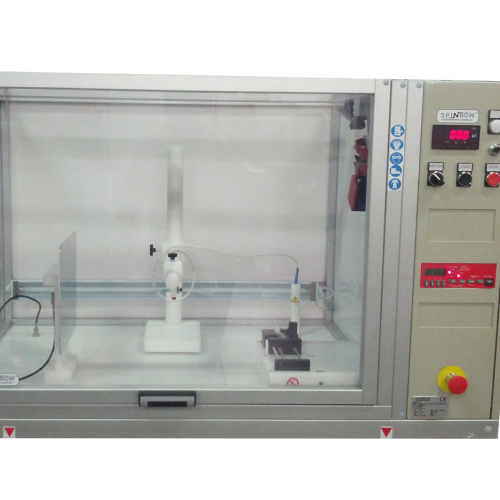

Ultrabasic Lab Unit

The Ultra Basic Lab-Unit is a cost-effective, easy to use and safe system for production of nanofibrous membranes by electrospinning. It is composed by:

High Voltage Power Supply;
Static Flat Plate Collector;
Syringe Pump;
Adjustable Stand Support and Needle Holder.

The Ultra Basic Lab-Unit is primarily designed for laboratories or research centers which wish to take their first steps into the electrospinning world with a very basic system but safe, reliable and professional at the same time.

The system is housed in a transparent theca made of anodized aluminium and polycarbonate. Special care is taken in the choice of materials. The work surface as well as all the parts that compose every collectors type, are electrically inert, to prevent electrical discharges, and solvent-resistant material.

User’s safety is guaranteed by:

Exhaust ventilation predisposition;
Automatic safety switch for openings;
Emergency stop push button.

An internal lamp makes the electrospinning process more visible.

On demand it is possible to conncet a climate system to perform Humidity and Temperature in the electrospinning machine.

TECHNICAL DATASHEET

Frame

Dimension	700x700x1000 mm
Work volume	0,5 m³
Weight	120 kg
Frame material	Anodised Aluminium
Work surface material	POM
Panel material	Polycarbonate
HMI	Digital Display and light signals
Machine Control	Control buttons and knobs
HV Power Supply	0 – 40 kV
Certification	CE

Static Flate Plate Collector

Dimension	250x250x3 mm
Grounded	Yes
Optional Collectors on demand	XY Moving Plate

Feeding System

Max Pumps number	2
Max Syringe number per pumps	1
Syringe Volume	From 1ml to 30ml
Min flow rate	0,1 μl/hr (with 1ml syringe)
Max flow rate	2800 ml/hr (with 60ml syringe)
Motor	Stepper
Accuracy	± < 0.5%
Riproducibility	± 0.1%
