Labware Accessories

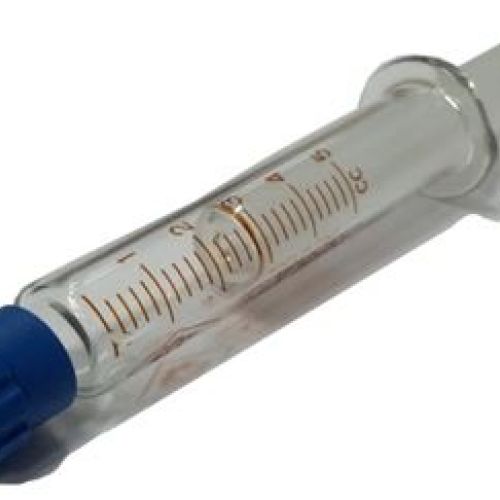

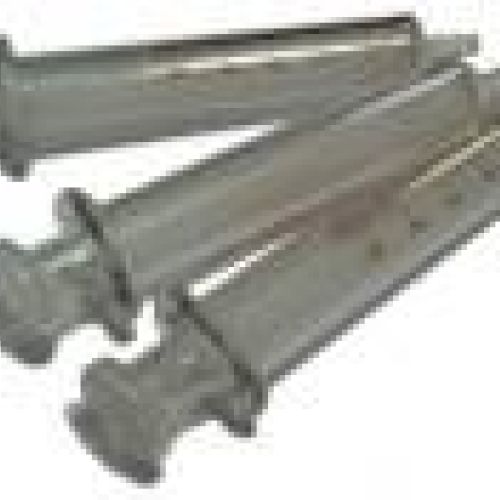

Syringes
Available in different volume (from 5ml to 30 ml) and materials (glass or plastic), syringes are equipped with male luer cone to be easily connected to the fittings.

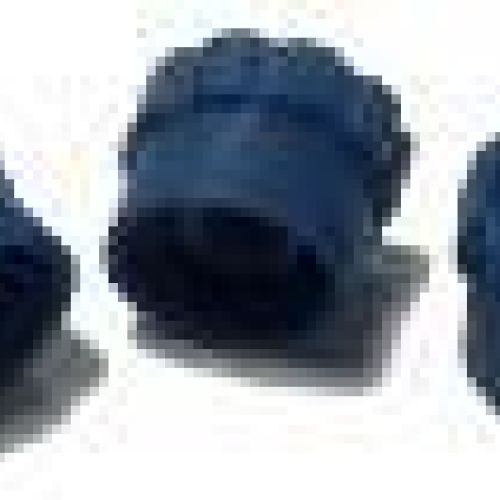

Caps
Caps help you to not waste polymer solution during the setup of electrospinning machine. They are equipped with female luer cone to be perfectly connected to syringes. Caps are made of polypropylene chemical resistant.
Fittings
Several type of fittings are available to help you in connection between needle and syringe:
|
PTFE UNF female LUER female |
PTFE LUER male UNF female | PTFE LOCK male UNF female | PTFE UNF female | PP LUER LOCK UNF male | PP LUER female UNF male |

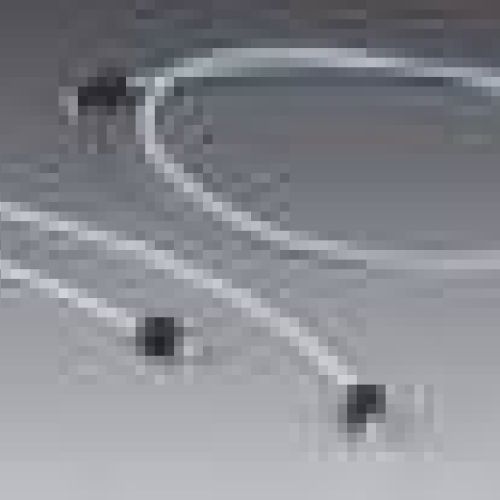

Tubes
Tubes are made of PTFE to be chemical resistant and they are flanged for the connection among the different types of fittings. Tubes are available in two types:
| PTFE – fittings UNF 1/4″ 28 G | Internal Diameter 0,8 mm – Outer Diameter 1,6 mm (Length 1000 mm) |
| PTFE – fittings UNF 1/4″ 28 G | Internal Diameter 1,6 mm – Outer Diameter 3,2 mm (Length 1000 mm) |
