Basic Lab Unit

The Basic Lab Unit is an easy to use and safe system for production of nanofibrous membranes by electrospinning. lt is composed by:

High Voltage Power Supply;
Different possibility of Collectors (in this case Drum Collector can roto-sliding);
Syringe Pump;
Adjustable Support and Needle Holder.

The system is housed in a transparent theca made of anodized aluminium and polycarbonate. Special care is taken in the choice of materials. The work surface as well as all the parts that compose every collectors type, are electrically inert, to prevent electrical discharges, and solvent-resistant material.

A PLC manages all the operations, and the friendly graphics interface of the touch screen makes the process very easy to set-up and control.

User’s safety is guaranteed by:

Exhaust ventilation predisposition;
Automatic safety switch for openings;
Emergency stop push button;
Walls shatterproof.

An internal lamp makes the electrospinning process more visible.

On demand it is possible to conncet a climate system to perform Humidity and Temperature in the electrospinning machine.

TECHNICAL DATASHEET

Frame

Dimension	700x700x1000 mm
Work volume	0,5 m³
Weight	150 Kg
Frame material	Anodised Aluminium
Work surface material	POM
Panel material	Polycarbonate
HMI	Touch-Screen Pannel
Machine Control	PLC
HV Power Supply	0 – 40 kV
Certification	CE

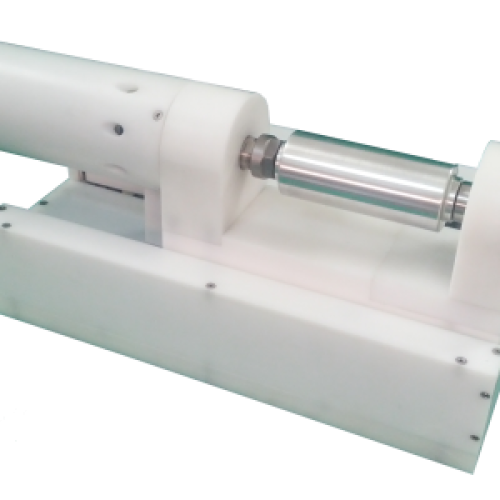

Drum Collector

Max Diameter	50 mm
Min Diameter	2 mm
Length	120 mm
Drum Material	Aluminium
Max speed	7000 rpm (diam. 50 mm)750 rpm (diam. 2 mm)
Motor	Brushless
Motor Control	PLC + Drive
Chassis collector material	POM
Others collectors on demand	Static Flat Plate; XY Moving Plate

Feeding system

Max Pumps number	2
Max Syringe number per pumps	1
Syringe Volume	da 1 ml a 30 ml
Min flow rate	0,1 μl/hr (con siringa da 1 ml)
Max flow rate	280 ml/hr (con siringa da 30 ml)
Motor	Stepper
Accuracy	± < 0.5%
Riproducibility	± 0.1%
